1 CAN bus inereface device – TC1001
SKU : TC1001

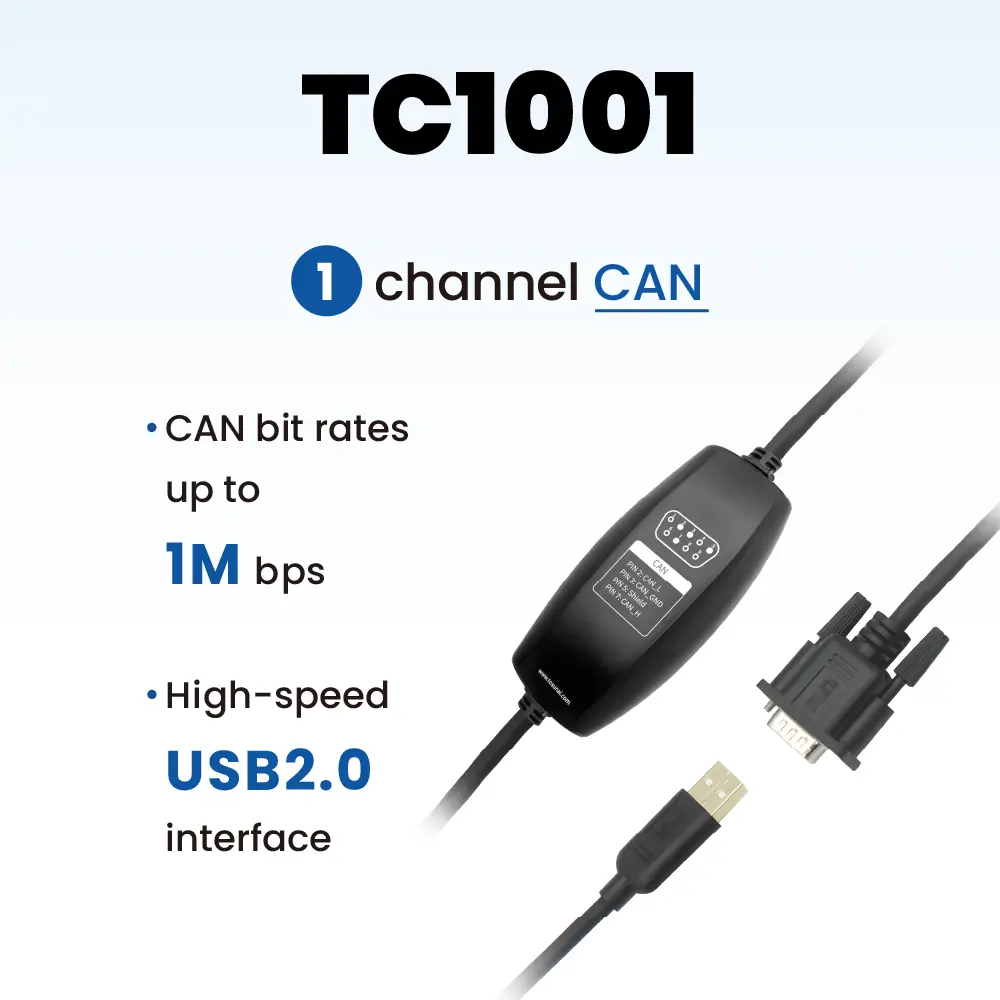

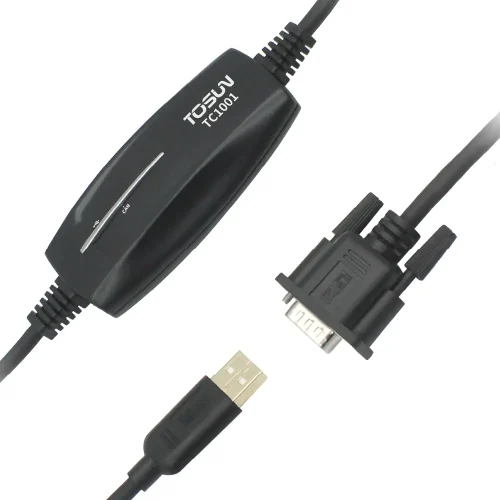

TC1001 is a portable, easy to install 1-way CAN bus to USB interface device with the highest rate of 1Mbps. The product adopts high-speed USB2.0 interface and PC connection.
Windows system drive-free design makes the device have excellent system compatibility.
Datasheet
English version
UserManual
English version
Related Products
Related products
TC1001 Functions and parameters
Suitable for CAN bus only.
–
With the powerful TSMaster software, support loading DBC and ARXML database files, can easily monitor, analyze, simulate CAN bus data, can also support UDS diagnosis, ECU flash, CCP / XCP calibration and other functions.
Can be used for the secondary development API of Windows and Linux, can support various development environments, such as C + +, C #, LabView, Python, etc., convenient integration into
various test systems, efficient and easy to use.
- US (microsecond) level hardware message timestamp to meet higher order requirements.
- Portable design, unique designed mounting holes for easy integration into various devices or instrument panels.
- High-speed USB2.0 interface, Windows, Linux system system drive-free design, with excellent system compatibility.
- CAN channel DC2500V sequestration.
- Automotive grade design, support for dbc file, a2l file, blf file, asc file.
- CAN channel port rate 125 Kbps—1Mbps tunable.
- Support for blf, asc format data recording and offline / online playback.
- The UDS diagnosis and CCP calibration can be supported.
- Support for the UDS-based Flash Bootloader.
- Support Windows, Linux system secondary development interface.
- Built-in 120 euro terminal resistance can be used in software configuration.
- Loadable TSMaster all charge license.
Typical applications
- Vehicle CAN bus data collection
- Domain Controller Test
- Various automated test systems
Additional information
channel | 1 *CAN |
---|---|
PC terminal interface | High-speed of USB2.0 |
CAN terminal interface | DB9 |
drive | Windows, Linux system free drive free design, with excellent system |
cache | Hardware cache, each channel send buffer support to 1000 frames CAN |
CAN | Support CAN2.0A, B protocol, comply with ISO11898-1 specification, |
Time stamp accuracy | 1us, the hardware message timestamp, to meet the high-order requirements |
terminal resistance | Built-in 120 euro terminal resistance can be used in software configuration |
Send a message per second * | Maximum of 20,000 frames / s |
Receipt of message messages per second * | Maximum of 20,000 frames / s |
* | Single-channel 1Mbps, 0-byte data domain case |
insulate | CAN channel DC 2500V isolation, electrostatic grade contact discharge ± |
supply electricity | USB supply electricity |
Case material | plastics |
working temperature | -40℃~80℃ |
Working humidity | 10% ~ 90% (no condensation) |
work environment | Stay away from the corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
