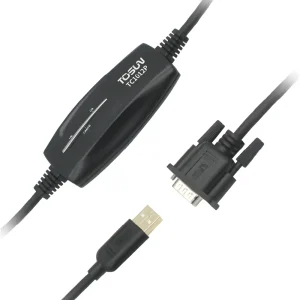

1 CAN FD / LIN to USB interface – TC1012P
SKU : TC1012P

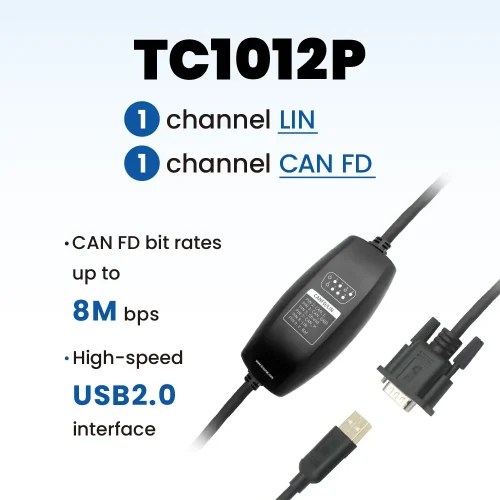

TC1012P is a portable and easily installable device launched by TOSUN, providing a 1 channel CAN FD / 1 channel LIN bus to USB interface. The CAN FD bus supports a maximum rate of 8 Mbps, while the LIN bus device supports rates from 0 to 20 Kbps.
For P series: There are two power supply options for this product: internal and external power supply. If internal power is chosen, the maximum output voltage the product can provide is 12V. If external power is selected, it can accept a voltage up to 32V.
$540.00
Datasheet
UserManual
Related Products
Related products
TC1012P Functions and parameters
The product utilizes a high-speed USB 2.0 interface for connection to a PC, and its driver-free design for Windows systems ensures system compatibility.
With the powerful TSMaster software, the device supports loading DBC and ARXML database files, facilitating the monitoring, analysis, and simulation of CAN FD/LIN bus data. It also supports UDS diagnostics, ECU flashing, CCP/XCP calibration, and other functionalities.
The device can be used for secondary development API on Windows and Linux, supporting various programming environments such as C++, C#, LabView, Python, etc. This makes it easy to integrate into various testing systems, providing efficiency and ease of use.
- Hardware message timestamping at the microsecond (μs) level, meeting advanced requirements
- High-speed USB 2.0 interface with driverless compatibility for Windows and Linux systems, ensuring system compatibility
- CAN channel isolation up to DC2500V
- Automotive-grade design supporting LDF dbc, a2l, blf, asc and arxml file formats
- Adjustable CAN bus baud rates from 125Kbps to 1Mbps
- LIN bus master and slave nodes can be software-configured
- Support for recording data in blf and asc formats, enabling offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Support for UDS-based Flash Bootloader
- Support Information Security Testing
- Secondary development interfaces for Windows and Linux systems
- Built-in 120-ohm terminal resistor, software-configurable
- Supports all paid licenses for TSMaster software
-
PIN2 CANFD _ Low
-
PIN3 GND
-
PIN5 Shield
-
PIN7 CANFD_High
-
PIN8 LIN
Typical applications
- Vehicle CAN FD/CAN/LIN bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| Channel | 1 x CAN (FD) / 1 x LIN |
|---|---|
| PC End | High-speed USB 2.0 interface |
| CAN End | DB9 interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, 2.0B protocols, compliant with ISO11898-1 standard, with baud rates ranging from 125Kbps to 1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| LIN | Supports LIN 1.3 and 2.0, with a baud rate ranging from 0 to 20 Kbps |
| Schedule Table | Supports LDF files and running scheduling tables, or configuring scheduling tables independently |
| Timestamp | 1μs hardware message timestamp |
| terminal resistance | Built-in 120-ohm termination resistor configurable via software |
| * | Single channel at 1Mbps with 0-byte data field scenario |
| insulate | CAN channel DC 2500V isolation, electrostatic grade contact discharge ±8KV |
| Power Supply | USB powered |
| Casing Material | Plastic |
| Operating Temperature | -40℃～75℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Environment | Keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
