2 CAN/CAN FD to fiber optic tool – TO1013

SKU : TO1013

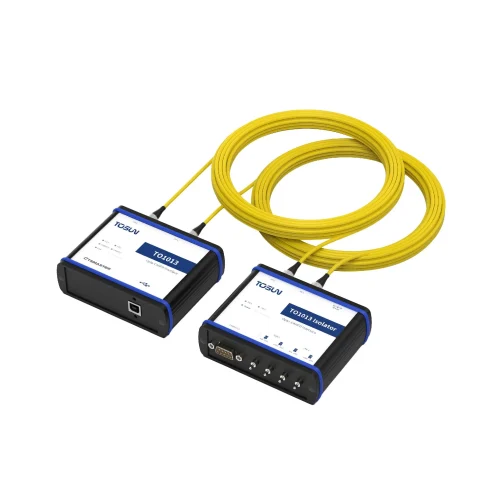

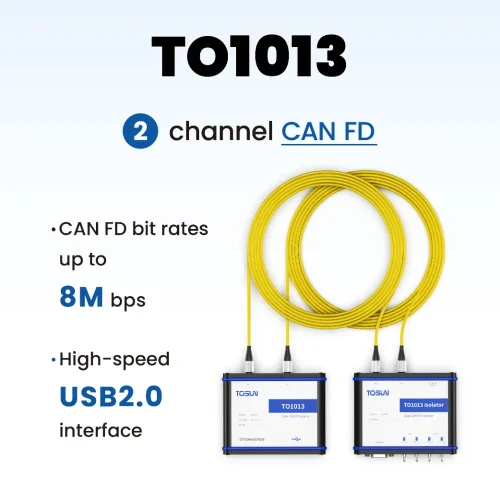

The TO1013, developed by TOSUN, is a dual-channel CAN/CAN FD to fiber optic converter, supporting CAN FD bus rates up to 8 Mbps. Utilizing fiber optic as the transmission medium, it minimizes signal loss and significantly extends transmission distance. Its superior EMI and EMC performance enhances resistance to interference, ensuring reliable communication.

TO1013 Functions and parameters

Integrated with TSMaster software, the TO1013 allows for easy loading of DBC and ARXML database files, simplifying CAN bus data monitoring, analysis, and simulation.
It also offers advanced features such as UDS diagnostics, ECU flashing, and CCP/XCP calibration.

The product comes with development APIs for both Windows and Linux, supporting multiple languages like C++, C#, LabView, and Python, making it easy to integrate into various test systems and environments.



  • Uses latest CAN FD bus opto-isolator Equipped with built-in ESD and surge protectors
  • Automotive-grade design, supporting dbc files, a2l files, blf files, and asc files
  • Supports blf and asc format data recording and offline/online playback
  • Supports UDS diagnostics and CCP/XCP calibration
  • Supports UDS based Bootloader flashing
  • Supports secondary development interfaces for
  • Windows and Linux systems
  • CAN channel capacitance to ground is configurable at 22pF/470pF using a toggle switch
TC1013 TC1014 TC1016/TC1016P TC1034 TLog1002 TLog1004 TO1013 Pin definition
  • PIN2 CAN FD1_ Low
  • PIN3 CAN FD_GND
  • PIN4 CAN FD2_ Low
  • PIN5 CAN FD_Shield
  • PIN7 CAN FD1_ High
  • PIN8 CAN FD2_ High
  • Product EMC testing
  • CAN bus transmission under other complex electromagnetic environments
channel

2 x CAN FD

PC End

USB 2.0 interface

CAN End

DB9 interface

Driver

Driver-free design for Windows and Linux systems, ensuring system compatibility

Buffer

Each channel supports a transmit buffer of up to 1000 CAN frames

CAN

Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps

CAN FD

Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps

Timestamp Accuracy

1μs, hardware message timestamp

Terminal Resistor

Built-in 60/120-ohm terminal resistor, with the resistance value configurable using a toggle switch

Capacitance to Ground

CAN channel capacitance to ground is configurable at 22pF/470pF
using a toggle switch

Messages Sent per Second*

Up to 20,000 frames per second

Messages Received per Second*

Up to 20,000 frames per second

*

Single channel at 1 Mbps with a 0-byte data field

Isolation

Opto-isolation

Power Supply

USB power supply + DC power supply (12V)

Power Consumption

2.5W

Case Material

Aluminum alloy

Dimension

109 x 97 x 35mm

Weight

Approx. 429g (without packaging)/Approx. 1132g (with packaging)

Operating Temperature

-40°C to 80°C

Operating Humidity

10% to 90% (non-condensing)

Operating Environment

Keep away from corrosive gases
