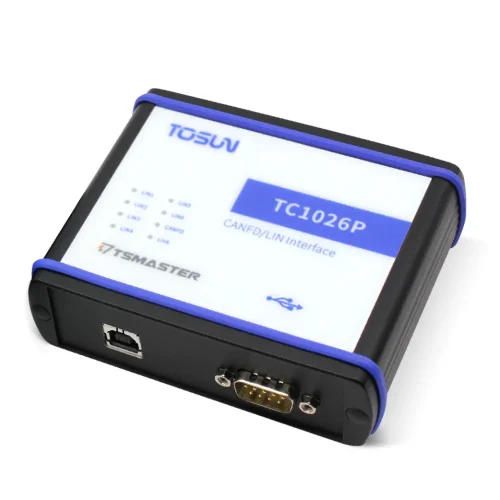

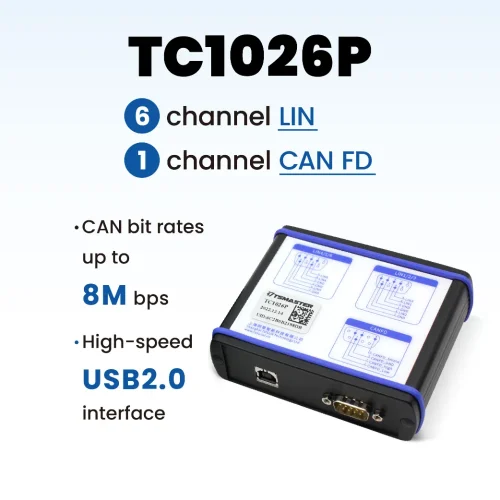

TC1026P – 1 CAN FD, 6 LIN to USB
TC1026P is a multi channel CAN FD and LIN bus interface device launched by TOSUN Technology. The CAN FD bus rate supports up to 8 Mbps, and the LIN bus rates supports from 0 to 20 Kbps. The product uses a USB 2.0 interface to connect with the PC and features a driverless design for Windows and Linux systems, ensuring excellent system compatibility.
- ARM64 Linux: tsdev
- HarmonyOS: tsdev
Related Products
Related products
TC1026P Functions and parameters
With the powerful TSMaster software, it supports loading DBC and ARXML database files, making it very convenient to monitor, analyze, and simulate CAN FD/LIN bus data, and it also supports functions such as UDS diagnostics, ECU flashing, CCP/XCP calibration, etc.
The secondary development APIs for Windows and Linux can support various development environments such as C++, C#, LabView, Python, etc., making it highly efficient and easy to use, and is convenient to integrate into various testing systems.
- Microsecond-level hardware timestamps for precise simulation and diagnostics
- CAN channel isolation up to DC 2500 V
- CAN channel baud rate adjustable from 125 Kbps to 1 Mbps, and CAN FD supports a maximum of 8 Mbps
- The LIN bus primary and secondary nodes can be configured via software
- Support for blf and asc format data logging and offline/online replay
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Supports LIN bus-based UDS diagnostics
- Supports information security testing

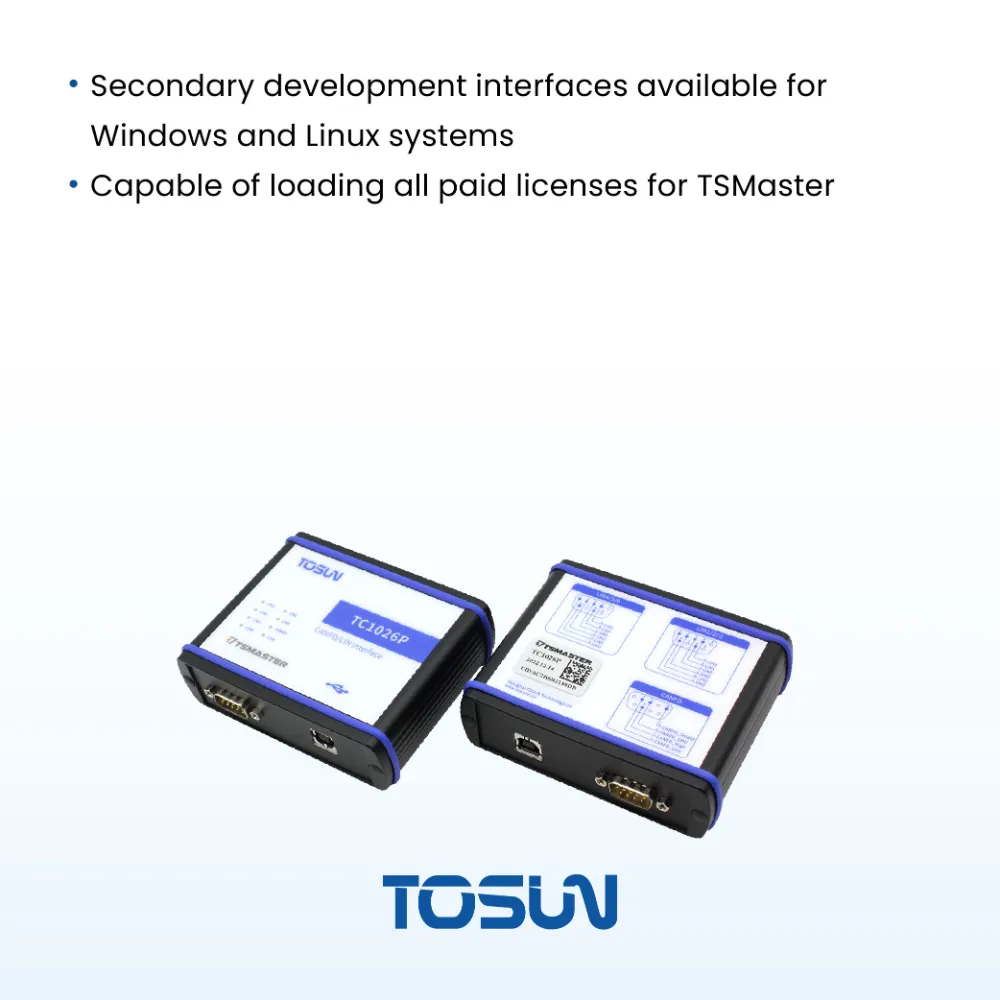

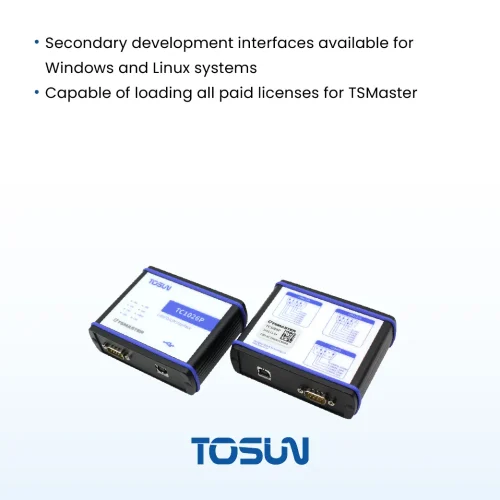

- Secondary development interfaces available for Windows and Linux systems
- Capable of loading all paid licenses for TSMaster
LIN 4/5/6
- PIN 1 GND 6
- PIN 2 GND 5
- PIN 3 GND 4
- PIN 4 LIN 6
- PIN 5 VBAT_LIN 6
- PIN 6 LIN 5
- PIN 7 VBAT_LIN 5
- PIN 8 LIN 4
- PIN 9 VBAT_LIN 4
LIN 1/2/3
- PIN 1 GND 3
- PIN 2 GND 2
- PIN 3 GND 1
- PIN 4 LIN 3
- PIN 5 VBAT_LIN 3
- PIN 6 LIN 2
- PIN 7 VBAT_LIN 2
- PIN 8 LIN 1
- PIN 9 VBAT_LIN 1
CAN FD
- PIN 2 CAN FD_Low
- PIN 3 CAN FD_GND
- PIN 5 CAN FD_Shield
- PIN 7 CAN FD_High
Typical applications
- Whole vehicle multi channel CAN FD/CAN bus data acquisition
- Domain controller testing
- Various automated testing systems
Specification
| Channel | 6 x LIN， 1 x CAN FD |
|---|---|
| PC Interface | USB 2.0 |
| CAN / LIN Interface | DB9 |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125 Kbps to 1 Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125 Kbps to 8 Mbps |
| LIN | Supports LIN 1.3 and 2.0, baud rate 0 to 20 Kbps |
| Schedule Table | Supports LDF files and running schedule tables, and also allows for self configuration of schedule tables |
| Timestamp Precision | 1 µs hardware message timestamp |
| Termination Resistor | Built in 120 ohm termination resistor, software configurable |
| Tx Frame Rate* | Up to 20,000 frames per second |
| Rx Frame Rate* | Up to 20,000 frames per second |
| * | Measured under single-channel operation at 1Mbps with a 0-byte data field. |
| Isolation | 2500 VDC galvanic isolation on CAN channels; ±8kV ESD (contact discharge) |
| Power Supply | USB power supply, external power supply is needed for LIN communication |
| Power Consumption | 3 W |
| Enclosure Material | Aluminum housing |
| Dimensions | Approx. 108 x 91 x 35 mm |
| Weight | Approx. 252 g (without packaging) / approximately 699 g (with packaging) |
| Operating Temperature | -40°C ~ 80°C |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Operating Environment | keep away from corrosive gases |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
