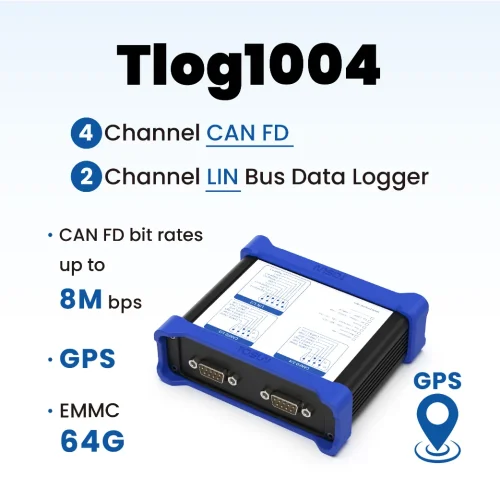

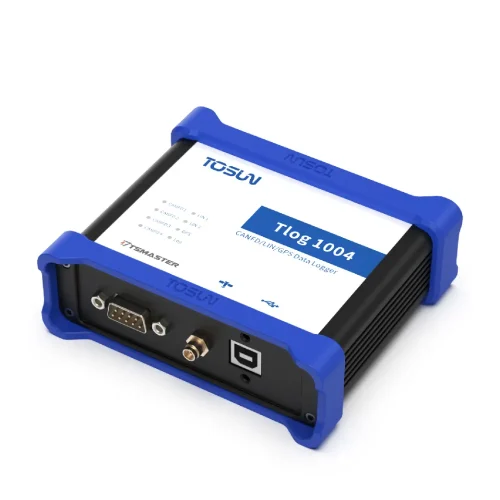

Tlog1004 Functions and parameters
The device is equipped with 3 digital inputs and 2 digital outputs, facilitating various signal measurements and system integration.
It connects to a PC via a high-speed USB 2.0 interface and has built-in 64GB storage capacity. The driver-free design ensures system compatibility with Windows.
Optional bus analyzer functionality is available. When activated, the device can function as a 4 CAN FD and 2 LIN bus analyzer in conjunction with TSMaster software.
It supports loading DBC and ARXML database files for convenient monitoring, analysis, and simulation of CAN bus data, as well as ECU flashing. Activation of features such as UDS diagnostics, CCP/XCP calibration, and more is also possible.
The device supports secondary development APIs for Windows and Linux, compatible with various development environments such as C++, C#, LabView,Python, etc., making it easy to integrate into various testing systems. It is efficient and user-friendly.
- Supports both ISO and non-ISO standard CAN FD Baud rates from 100 Kbps to 8 Mbps
- Internal real-time clock
- Built-in GPS, or external GPS synchronization
- 64GB eMMC storage built-in
- LED lights display communication status
- Configurable triggering methods
- Data exportable to PC via USB
- Direct export in BLF format
- Exported BLF files can be replayed directly in TSMaster software
![TC1013 TC1014 TC1016/TC1016P TC1034 TLog1002 TLog1004 LIN](https://tosunai.us/wp-content/uploads/2023/12/TC1013-TC1014-TC1016_CF-TC1034_CF-TLog1002_LIN.webp)
CAN FD 2/4
-
PIN 2 CANFD2_Low
-
PIN 3 CANFD_GND
-
PIN 4 CANFD4_Low
-
PIN 5 CANFD_Shield
-
PIN 7 CANFD2_High
-
PIN 8 CANFD4_High
![TC1013 TC1014 TC1016/TC1016P TC1034 TLog1002 TLog1004 LIN](https://tosunai.us/wp-content/uploads/2023/12/TC1013-TC1014-TC1016_CF-TC1034_CF-TLog1002_LIN.webp)
CAN FD 1/3
-
PIN 2 CANFD1_Low
-
PIN 3 CANFD_GND
-
PIN 4 CANFD3_Low
-
PIN 5 CANFD_Shield
-
PIN 7 CANFD1_High
-
PIN 8 CANFD3_High
-
![TC1026/TC1026P_LIN, TC1034, TLog1002_LIN, TLog1004 pin img](https://tosunai.us/wp-content/uploads/2023/12/TC1026_LIN-TC1034_FR-TLog1002_CF-1.webp)
CAN FD 1/2
-
PIN 1 Digital_In1
-
PIN 2 Digital_In2
-
PIN 3 GND
-
PIN 4 Digital_Out1
-
PIN 5 Digital_Out2
-
PIN 6 LIN1
-
PIN 7 Digital_In3
-
PIN 8 LIN2
-
PIN 9 VBAT
Typical applications
- Road Experiment Data Collection
- High-altitude, High-temperature, High-humidity Tests
- Bench Testing and Calibration
Specification
PC End | High-speed USB 2.0 interface |
---|---|
CAN End | DB9 interface (partially other interfaces) |
driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
Secondary Development* | Supports Python, LabView, C#, C++, etc., with provided examples for some |
* | Single : Upon choosing to activate the bus analyzer function, support will be enabled |
Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 100Kbps to 8Mbps |
Digital Input | Sampling frequency of 1 KHz |
Digital Output | Output frequency of 1 KHz |
Timestamp | 1μs hardware timestamp accuracy |
Isolation | CAN channel isolated at DC 2500V, with ESD protection of ±8KV (contact discharge) |
Terminal Resistance | Built-in 120-ohm termination resistor, software configurable |
Power Supply | USB-powered for use as an analyzer, DC 9-36V for use as a recorder |
Operating Temperature | -40℃ to 85℃ |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
