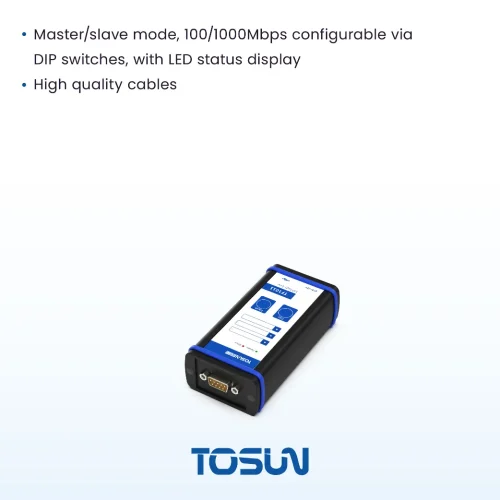

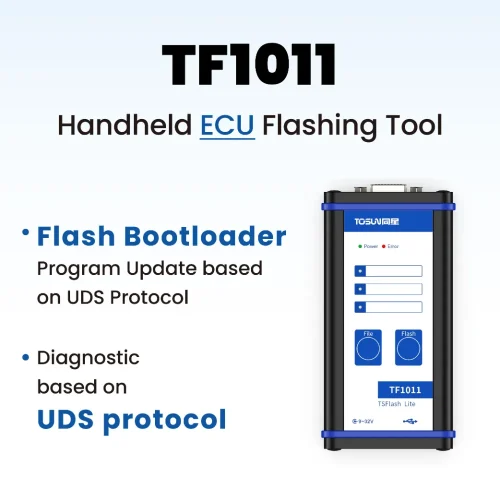

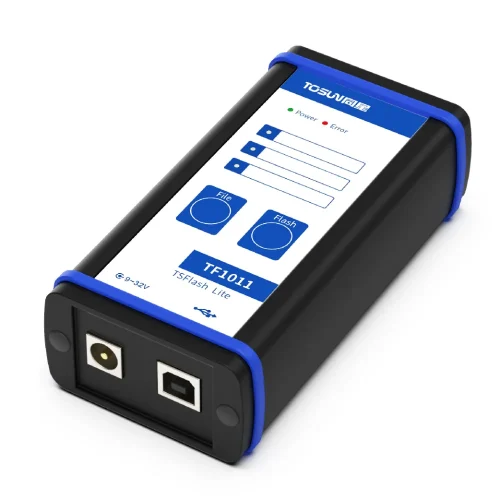

Handheld ECU Flashing Tool – TF1011
SKU : TF1011
TF1011 is a single-channel offline / online handheld program brush device. The device can store three downloaded HEX files at the same time, and switch to brush files through file switching.
$540.00
Datasheet
UserManual
Related Products
Related products
TF1011 Functions and parameters
TF1011 is a single-channel Handheld ECU Flashing Tool.
In conjunction with the TSMaster software,users can complete the editing of UDS diagnostic processes (typical applications such as UDS flashing procedures) without the need for coding. It supports configuring three sets of flash processes simultaneously, switching between them via buttons.
It features a single CAN FD interface compatible with both CAN 2.0 and CAN FD. It includes programmable terminal resistors, eliminating the need for users toexternally connect terminal resistors.
- CAN channel DC2500V isolation
- Built-in configurable 120Ω terminal resistor
- Utilizes a DB9 interface, capable of drawing power from the DB9 interface
- Comes with a matching DB9 to OBD-II cable
- UDS flashing process configured through the graphical interface of TSMaster software, no programming required
- Seamless integration between R&D and production configuration processes
- Permission control (optional): Allows authorized users to remotely update configuration processes
- Supports custom seed key algorithm downloads
- Supports a maximum of three concurrent diagnostic (including FBL flashing) processes, switchable via buttons
- Flashing process message logging (optional)
- Supports Infineon Uart on CAN protocol
- Supports controlling power ports of the component being flashed
-
PIN1 Power_In
-
PIN2 CAN_Low
-
PIN3 GND
-
PIN5 CAN_Shield
-
PIN7 CAN_High
-
PIN9 Power_Out
Typical applications
- After configuration on the PC side, the device can achieve the following functions in a handheld, offline scenario
- Diagnostic based on UDS protocol
- Flash Bootloader Program Updates based on UDS protocol
Specification
| channel | 1 channel CAN FD |
|---|---|
| PC End | USB2.0 |
| CAN End | DB9, with a matching DB9 to OBD interface cable |
| driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| CAN | Supports CAN 2.0A, B protocols, compliant with ISO11898-1 standard, with baud rate 125Kbps-1Mbps |
| CAN FD | Supports CAN FD that complies with both ISO and non-ISO standards, with baud rates from 125Kbps to 8Mbps |
| Timestamp | Message accuracy at 1μs, diagnostic command timestamp accuracy at 10μs |
| Terminal Resistor | Built-in 120-ohm terminal resistor configurable via software |
| Isolation | CAN channels isolated up to DC 2500V, electrostatic level contact discharge ±8KV |
| Storage (optional) | Built-in 64GB eMMC storage, recording messages for each diagnostic process |
| Power Supply | DC 7-18V |
| Operating Temperature | -40°C to 85°C |
| Casing Material | Aluminum |
| Dimensions | 115 x 58 x 33mm |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
