2 CAN FD to miniPCIe Interface – MP1013
SKU : MP1013
MP1013 is a device with a 2 channel CAN FD bus to mini PCIe interface, suitable for various tasks including CAN FD/CAN network development, simulation, and testing.
$360.00
Datasheet
UserManual
Related Products
Related products
MP1013 Functions and parameters
The MP1013 interface card enables computers with miniPCIe slots to easily connect to CAN/CAN FD bus networks, allowing real-time monitoring of multiple bus networks. Its compact size makes it convenient for integration into vehicular industrial control computers, single-chip microcomputer (SCM), portable industrial hosts, and industrial laptops. It offers easy installation and simple usage.
When combined with the powerful TSMaster software, it enables convenient monitoring, analysis, and simulation of CAN FD bus data. Additionally, it supports functionalities such as UDS diagnostics, ECU flashing, and CCP/XCP calibration.
With secondary development APIs, it supports various programming environments like C++, C#, LabView, Python, etc., making it easy to integrate into different testing systems, ensuring high efficiency and usability.

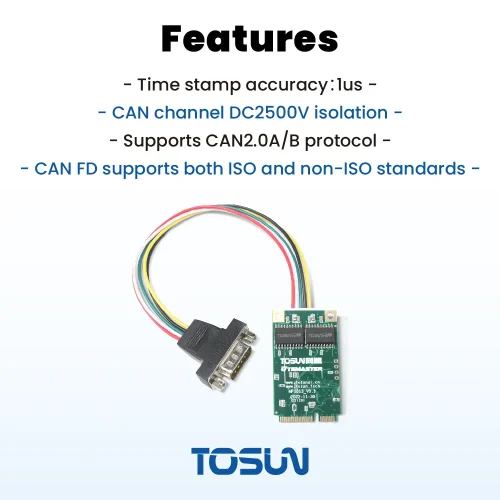

- Microsecond (μs)-level hardware message timestamping meeting advanced requirements
- Driver-free design for Windows systems, ensuring system compatibility
- Standard MiniPCIe interface complying with USB 2.0 specifications
- Dual-channel isolated CAN FDinterfaces, provided via interface boards with standardDB-9 connectors
- CAN channel isolated at DC 500V
- Automotive-grade design, supporting DBC files, A2L files, BLF files, ASC files, ARXML files
- Supports data recording in BLF and ASC formats, along with offline/online playback
- Capable of UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Offers secondary development API interfaces for Windows and Linux systems
- Supports all paid licenses for TSMaster software
Typical applications
- Automatic Driving Data Collection
- In various automated testing systems
Specification
| channel | 2 x CAN FD |
|---|---|
| PC End | Standard mini PCIe interface |
| Driver | Driver-free design for Windows and Linux systems, ensuring system compatibility |
| Buffer | Each channel supports a transmit buffer of up to 1000 CAN frames |
| CAN | Supports CAN2.0A, B protocols, compliant with ISO11898-1 standard, baud rate 5Kbps—1Mbps |
| CAN FD | Supports both ISO and non-ISO standard CAN FD, baud rate 100Kbps—8Mbps |
| Timestamp | 1μs hardware message timestamp |
| Packets Sent per Second | Maximum of 20,000 frames/second |
| Packets Received per Second | Maximum of 20,000 frames/second |
| Isolation | CAN channel isolated at 2500VDC, contact discharge electrostatic level ±8KV |
| Power Supply | Via mini PCIe interface |
| Operating Temperature | -40℃～85℃ |
| Dimensions | 50.1 x 30.1 x 9.2 mm |
| Secondary Development | Supports Python, LabView, C#, C++, and more |
During operation, make sure to correctly connect the power lines and avoid frequent plugging and unplugging.
